Peak 320 is a multifunctional luminaire designed to set new standards with a simple and flexible design that ensures installations for both pole and arm.
| PEAK 320 | |
|---|---|
| Material | Cast aluminium |
| Finish | Raw anodized |
| Graphite grey: YW355F, Akzo Nobel | |
| Silver grey: Y2370I, Akzo Nobel | |
| Black textured mat: Noir 900 Sablé, SN351F, Akzo Nobel | |
| Corten brown: YX355F, Akzo Nobel | |
| RAL by your choice | |
| Shade | Hardened glass |

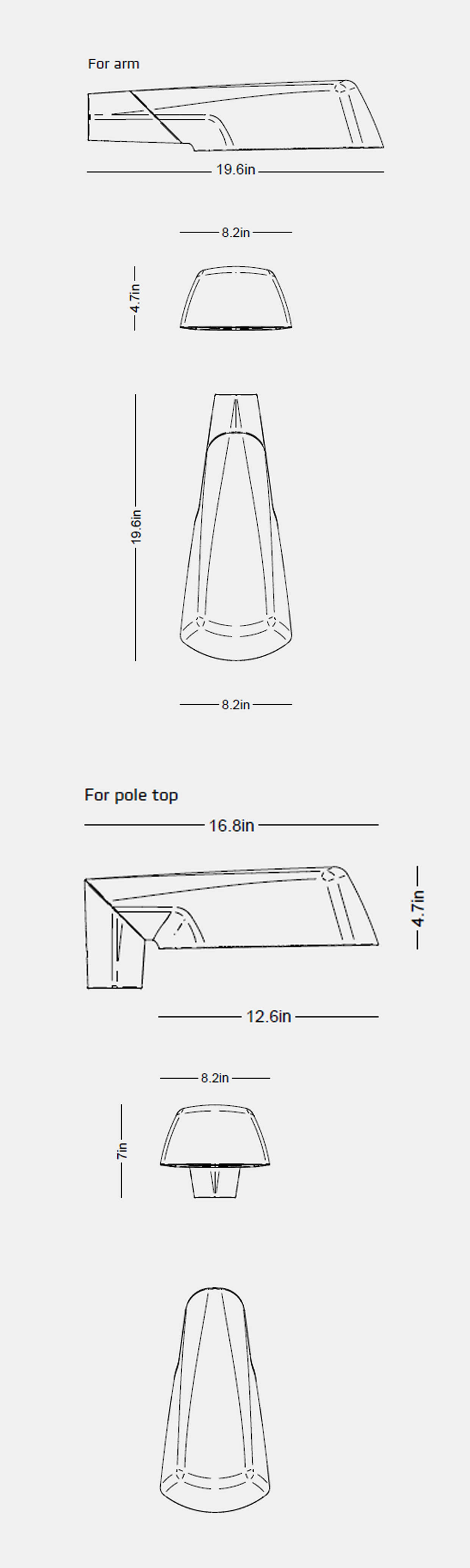

| Top mounting | Post top/pipe: Ø2,4 in x H3 in |
| Arm mounting | Arm pipe: Ø1.9 in x 3 in or Ø2,4 in x 3 in |
| Connection | Post top 26 ft SJTW5xAWG18 (SJTW3xAWG18 for NEMA socket), is included |
| Classification | cULus; Wet location; IP66; class I; IK09 |
| Corrosion class | C4, C5 optional |
| Weight | 10 lbs |
| Wind-sweeping area | 0,58 ft² |
| LED with lenses | FF-DA T3 |
|---|---|
| Operational life | min 100,000 hours at ta max 77°F (25°C), L90B10 |
| Colour temperature | View configurator |
| Colour rendering | View configurator |
| Colour accuracy | 5 steps SDCM |
| Driver | Xitanium 55W 0.1-1.8A 0-10V |
|---|---|
| Inrush current | ´@120V; max 23 A (10% after 166,5 µs) |
| ´@277V; max 51,5 A (10% after 158 µs) |
| Nominal voltage, AC | 120-277 Vac |
| Operational input voltage, AC | 108-305 Vac |
| Nominal voltage, DC | 125-250 Vdc |
| Nominal frequency range | 50-60 Hz |
| Surge protection | L/N-GND: 6 k; L-N: 6 kV |
| Operational life | 50,000+ hours |
| Dimming/control | 0-10V |
| Other control options | via NEMA socket |
