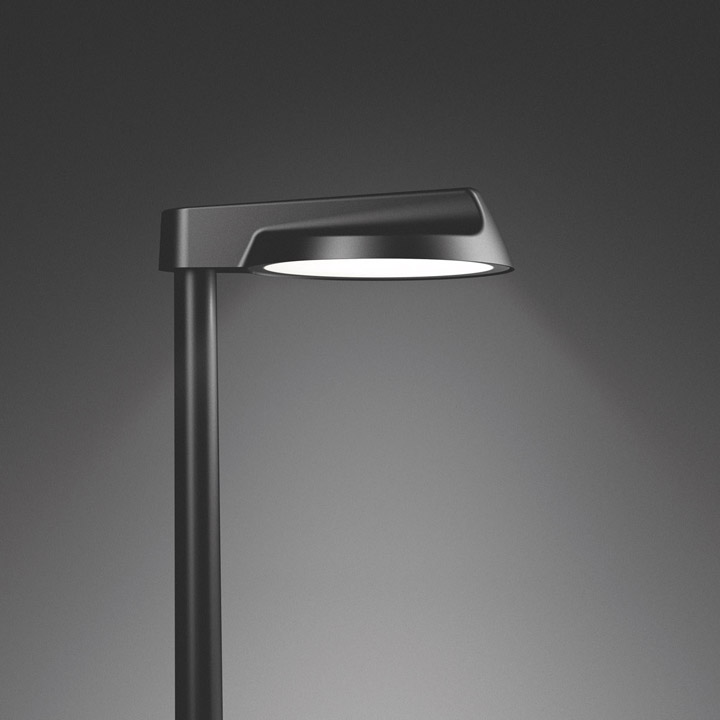

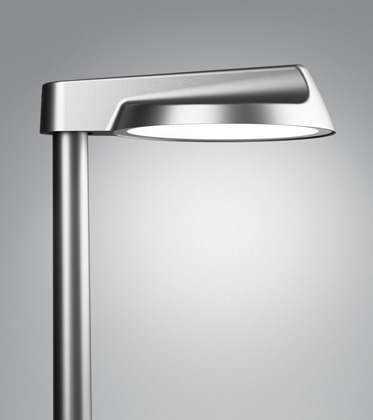

Peak 380 is available in two different versions for vertical pole and horizontal arm. The same strong and characteristic design with optimized and simplified adaptions for pole/arm.
The Peak luminaires come with LED with different types of lenses.
| PEAK 380 | |
|---|---|
| Material | Cast aluminium |
| Finish | Raw anodized |
| Graphite grey: YW355F, Akzo Nobel | |
| Silver grey: Y2370I, Akzo Nobel | |
| Black: Noir 900 Sablé, SN351F, Akzo Nobel | |
| Corten brown: YX355F, Akzo Nobel | |
| Black textured mat: Noir 900 Sablé, SN351F, Akzo Nobel | |
| RAL by your choice | |
| Shade | 3 mm hardened glass |

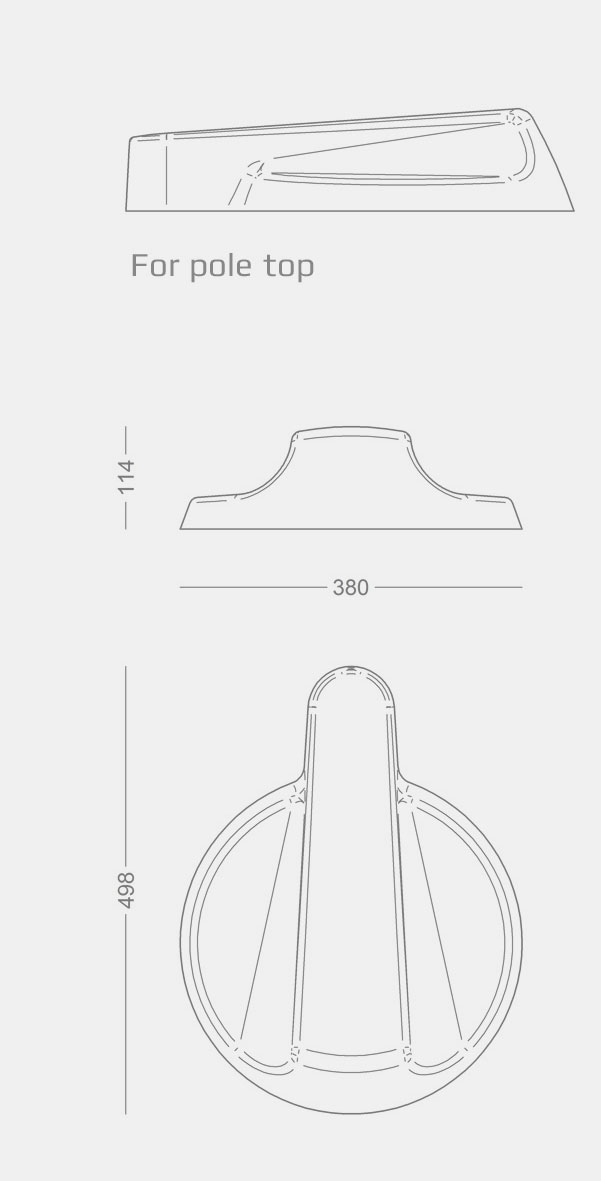

| Top mounting | Post top/pipe: Ø2,4 in x H3 in or Ø2,9 in x H3 in |
| Arm mounting | Arm pipe: Ø1.9 in x 3.6 in or Ø2,4 in x 3.6 in |
| Connection | In the post, 26,2 ft SJTW5xAWG18 (SJTW3xAWG18 for NEMA socket), is included. |
| For other lengths, view configurator | |
| Classification | cULus (pending); Wet location; IP66; class I; IK09 |
| Impact resistance | IK09 |
| Corrosion class | C4, C5 optional |
| Weight | 15 lbs |
| Wind-sweeping area | 0,54 ft² |
| FF-DA with lenses | FF-DA T4 |
|---|---|
| Operational life | min 100,000 hours at ta max 77°F (25°C), L90B10 |
| Colour temperature | 2700, 3000, or 4000 Kelvin |
| Colour rendering | CRI 80 |
| Colour accuracy | 5 steps SDCM |
| Driver 2xFF | Inventronics 100W 70-1050mA 0-10V |
|---|---|
| Inrush current | ´@120V; max 57,2 A (10% after 220 µs) |
| ´@277V; max 139 A (10% after 232 µs) | |
| Nominal voltage, AC | 120-277 Vac |
| Operational input voltage, AC | 90-305 Vac |
| Nominal voltage, DC | 127-300 Vdc |
| Nominal frequency range | 50-60 Hz |
| Surge protection | L/N-GND: 10 k; L-N: 6 kV |
| Operational life | min 100,000 hours |
| Dimming/control | 0-10V |
| Other control options | via NEMA socket |
