NYX 190 Bollard

Nyx is a range of exterior fittings for wall, bollard, or pole mounting. NYX is the answer to today’s demands for pleasant and well-defined light directed to the place where light is required.

The Nyx 190 fitting can be mounted on wall or bollard.

Specifications

NYX 190 Bollard

skitse-nyx-stander-1200-paa-flange-med-nyx-190-hoved-us_web

Luminaire

NYX 190
Material Cast aluminium
Finish Raw anodized
Graphite grey: YW355F, Akzo Nobel
Silver grey: Y2370I, Akzo Nobel
Corten brown: YX355F, Akzo Nobel
Black textured mat: Noir 900 Sablé, SN351F, Akzo Nobel
RAL by your choice
Shade UV-resistant polycarbonate, frosted
Mounting Flanged base
Connection In the post, SJTW5xAWG18 is included
Classification cULus; Wet location; IP55; class I; IK10
Corrosion class C4, C5 optional
Weight 15,6 lbs

LED and driver data

LED type 2 x Bridgelux COB
Operational life min 100,000 hours at ta max 77°F (25° C), L90B10
Color temperature 2700, 3000, or 4000 Kelvin
Color rendering min 90 CRI, 3000 K, with R9 = 72
Color accuracy 3 steps SDCM

Driver Xitanium 25W 0.1-1.0A 0-10V INT
Inrush current @120V; max 10 A (10% after 62 µs)
@270V; max 26 A (10% after 73 µs)
Nominal voltage, AC 120-277 Vac
Operational input voltage, AC 108-305 Vac
Nominal voltage, DC
Nominal frequency range 50-60 Hz
Surge protection L/N-GND: 2,5 k; L-N: 2,5 kV
Operational life min 50,000 hours
Dimming/control 0-10V

Media & downloads

nyxpullert_kbh_4054_1166

The Nyx Bollard makes it safe to walk along the lakes in Copenhagen.

Umbraco.Cms.Core.Models.Link More photos from Copenhagen
nyx190_hennestr_1166

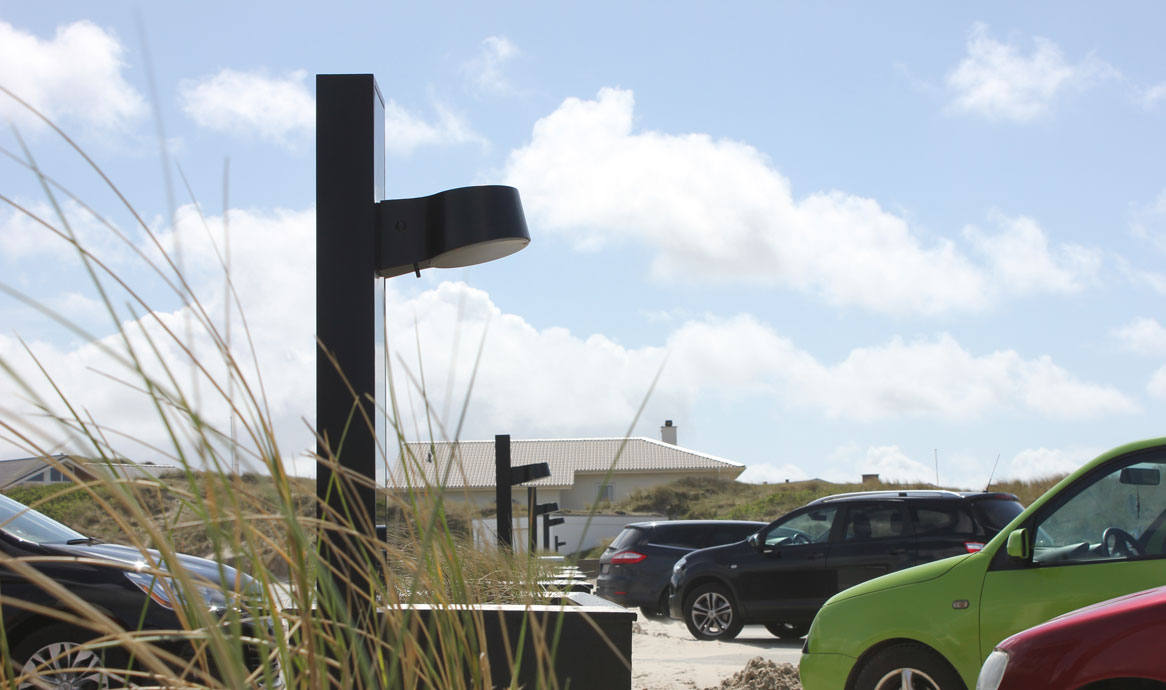

Nyx 190 at solar cell bollard - Henne Strand

nyx190_norge_1166

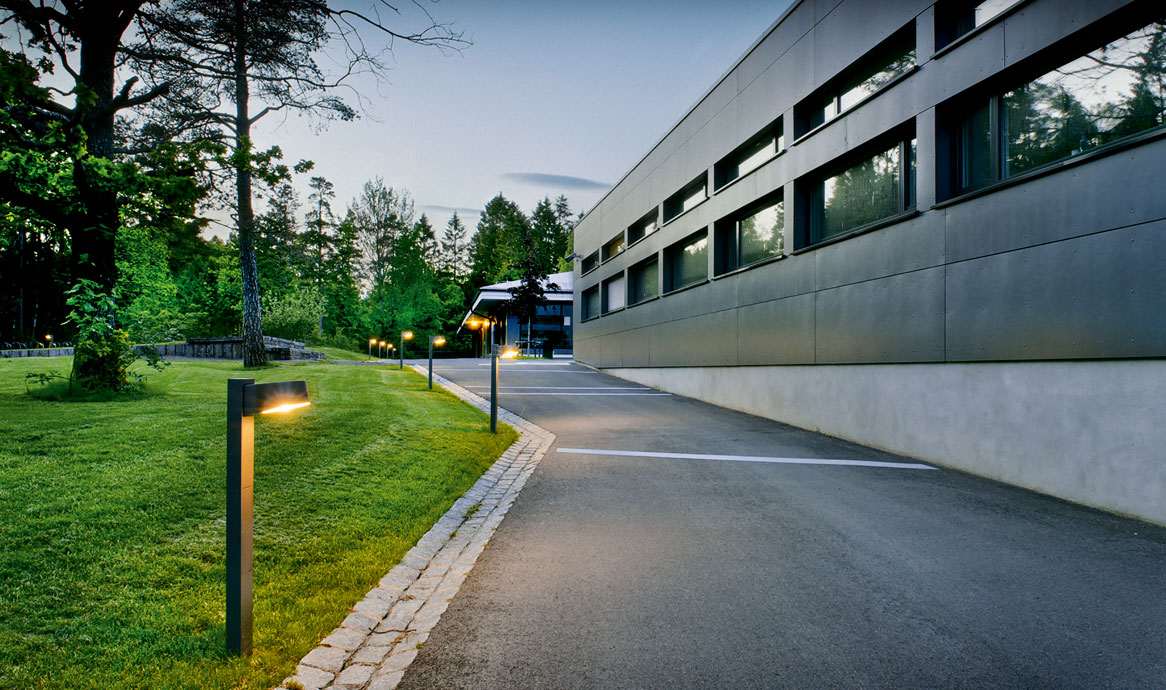

Nyx Bollard at college in Norway.

nyxpullert_bagsvd_1166

Nyx bollard 1000 graphite grey - Bagsværd New School

Umbraco.Cms.Core.Models.Link More photos
aften_pullert_8608_1166

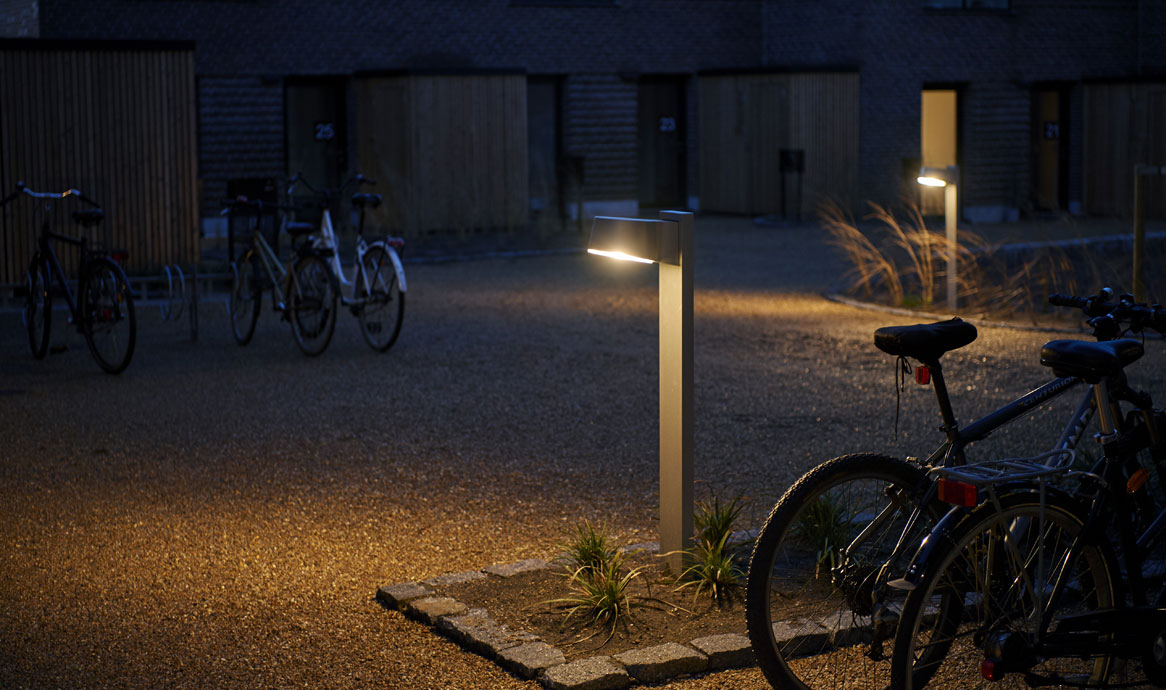

Masu Planning, landscape architects, have used the Nyx luminaires in the residence "Bjerglandsbyen" in the Copenhagen suburb Brønshøj; here the Nyx Bollard.
